0.15mm FPC Board Single-sided Flexible Immersion Gold Polyimide
Flex pcb
Single sided Flexible PCB Board 0.15mm board thickness
Immersion gold surface
This is a type of flexible printed circuit for the application of
antenna. It’s a single layer board at 0.15mm thick. The base laminate is from ITEQ, It’s
fabricated per IPC 6012 Class 2 using supplied Gerber data. 3M tape is applied on the back
side, Polyimide as stiffner on the head.
Flexible circuits are also used extensively in other applications
and industries including:
Communications
Consumer Electronics
Automotive
Medical
Industrial
Aerospace
Military
Transportation
How To PCB Quote
Starting Requirements and Specifications
(1) Gerber data for all artwork layers
(2) Aperture list (If artwork data are RS-274-X format,Please
ignore this.)
(3) Drill file (including hole sizes)
(4) Outline panel drawing
(5) Special notes or "Read Me" files pertaining to:
1 Board material and thickness
2 Finished copper thickness
3 Color / type of solder-mask
4 Color of silkscreen
5 Surface finishes (HAL Pb free, immersion gold etc.)
6 Lay up for multilayer printed board
7 Controlled impedance
8 Other special requirements or instructions
Parameter and data sheet
Max. Size of Flexible PCB | 600*400mm |
Max. Number of Layers | 8 |
Board Type | Flexible PCB |
Board Thickness | 0.15mm |
Board Material | PET 25µm |
Board Material Supplier | Shengyi |
Tg Value of Board Material | 60℃ |
|
PTH Cu thickness | ≥20 µm |
Inner Iayer Cu thicknes | N/A |
Surface Cu thickness | 35 µm |
|
|
Coverlay Colour | Yellow Top / White Bottom |
Number of Coverlay | 2 |
Thickness of Coverlay | 25 µm |
Stiffener Material | Polyimide |
Stiffener Thickness | 0.2mm |
|
|
Type of Silkscreen Ink | IJR-4000 MW300 |
Supplier of Silkscreen | TAIYO |
Color of Silkscreen | Black |
Number of Silkscreen | 1 |
|
Peeling test of Coverlay | No peelable |
Legend Adhesion | 3M 90℃ No peeling after Min. 3 times test |
|
Surface Finish | Immersion Gold |
Thickness of Nickle/Gold | Au: 0.03µm(Min.); Ni 2-4µm |
RoHS Required | Yes |
Famability | 94-V0 |
|
Thermal Shock Test | Pass, -25℃±125℃, 1000 cycles. |
Thermal Stress | Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
Function | 100% Pass electrical test |
Workmanship | Compliance with IPC-A-600H & IPC-6013C Class 2 |
Flexible PCB / FPCB Applications
FPCBs are used widely in everyday technology and electronics in
addition to high-end, complex completed components. Two of the most
prominent examples of flexible circuit usage is in modern portable
electronics, devices, hard disk drives and desktop printers.

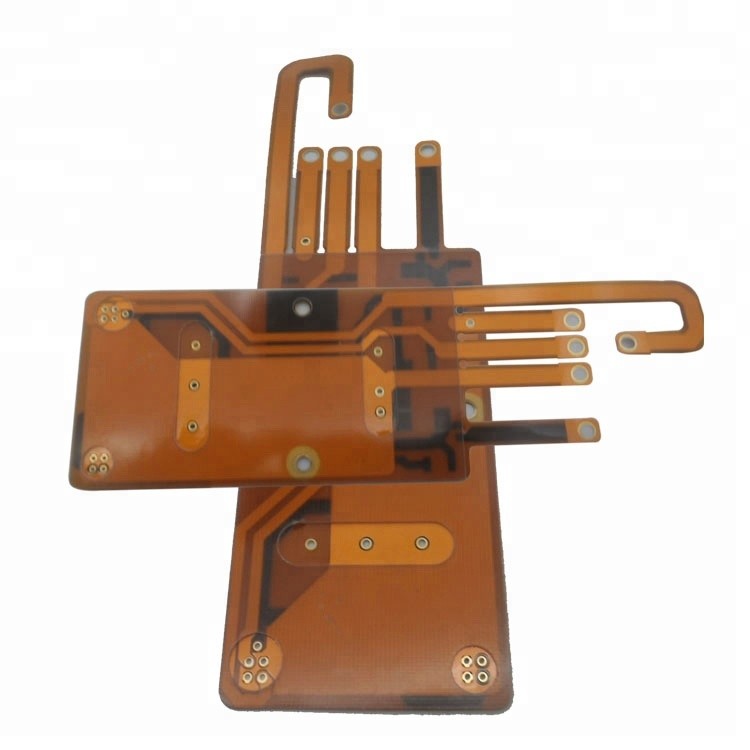

FPCB Photo
