    SMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long Lifespan

    Ask Lasest Price
    Brand Name : OEM and ODM
    Model Number : SL81203S005
    Certification : UL,RoHS, CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 100000pcs per day
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    SMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long Lifespan

    Shenzhen SMT Turnkey specialized pcb and pcba manufacturer fast production

    Shinelink SMT Contract Assembly Service


    Shinelink accept the order from small quantity prototype to mass production assembly as well.Order normally lead time 15-20days.For the Urgent order,could finish in a week.Welcome to send us file to get quote.


    Files Requested For PCB Assembly Quotation


    ---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
    1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
    2. A detailed bill of materials (BOM)
    3. Clear pictures of PCB or PCBA sample for us
    4. Quantity and delivery required
    5. Test method for PCBA to guarantee 100% good quality products.
    6. Schematics file for PCB design if need to do function test.
    7. A sample if available for better sourcing
    8. CAD files for enclosure manufacturing if required
    9. A complete wiring and assembly drawing showing any special assembly instructions if required


    Shinelink kinds PCBA Product


    SMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long Lifespan



    94V0 PCBA manufacture Scale capabilities up to

    We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

    SMT process (RoHs Compliant) Capabilities up to:

    1. 0201 Chip Size
    2. 12 mils Integrated Circuit (IC) Pitch
    3. Micro Ball Grid Array (BGA) – Pitch 16 mils
    4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
    5. Quad Flat Package (QFP) – Pitch 12 mils

    THT(Wave soldering) process (RoHs Compliant) Capabilities up to:


    1.Single side wave soldering

    2.SMT & THT mixture process

    SMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long Lifespan



    PCB Assembly Capabilities

    Turnkey PCBA

    PCB+components sourcing+assembly+package

    Assembly details

    SMT and Thru-hole, ISO lines

    Lead Time

    Prototype: 15 work days. Mass order: 20~25 work days

    Testing on products

    Flying Probe Test, X-ray Inspection, AOI Test, functional test

    Quantity

    Min quantity: 1pcs. Prototype, small order, mass order, all OK

    Files we need

    PCB: Gerber files(CAM, PCB, PCBDOC)

    Components: Bill of Materials(BOM list)

    Assembly: Pick-N-Place file

    PCB panel Size

    Min size: 0.25*0.25 inches(6*6mm)

    Max size: 20*20 inches(500*500mm)

    PCB Solder Type

    Water Soluble Solder Paste, RoHS lead free

    Components details

    Passive Down to 0201 size

    BGA and VFBGA

    Leadless Chip Carriers/CSP

    Double-sided SMT Assembly

    Fine Pitch to 0.8mils

    BGA Repair and Reball

    Part Removal and Replacement

    Component package

    Cut Tape,Tube,Reels,Loose Parts

    PCB assembly
    process

    Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

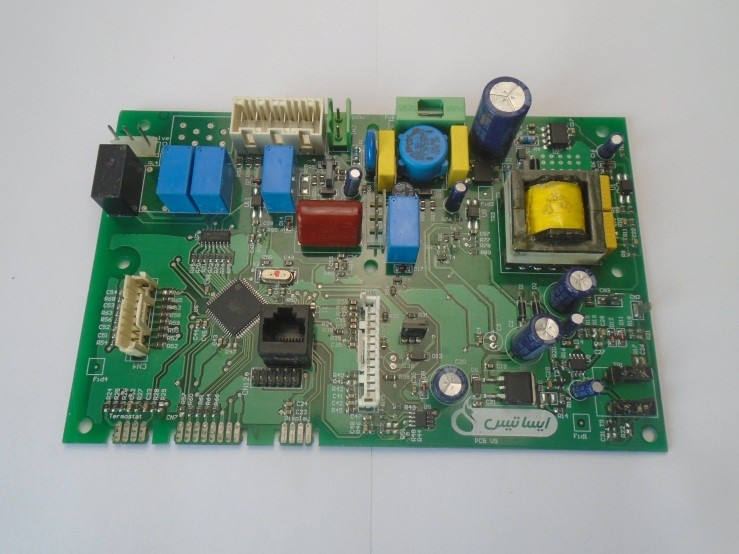

    PCBA Picture

    SMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long LifespanSMT Turnkey Specialized Prototype Circuit Board Assembly 2% Tolerance Long Lifespan
