AirPrime MC7330

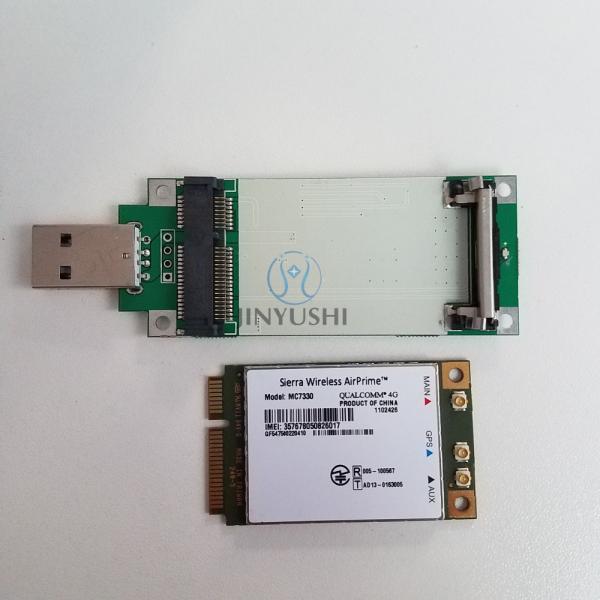

The Sierra Wireless MC7330 PCI Express Mini Card is a compact, lightweight, wireless LTE- and UMTS-based modem.
The MC7330 provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA, WCDMA, GSM, GPRS, EDGE, and GNSS connectivity for networking, and M2M applications over several radio frequency bands. The device also supports 2G / 3G roaming, subject to network operator provisioning.
The MC7330 will be Windows 8 Mobile Broadband Interface Model (MBIM) compliant.
Supported RF bands
The modem, based on MDM9215 baseband processor, supports data operation on LTE, DC-HSPA+, HSPA+, EDGE, GPRS and GSM networks.
Physical features
Small form factor—conforms to type F2 as specified in PCI
Express Mini Card Electromechanical Specification Revision 1.2.
Operating temperature range (Class A): -30 °C to +70 °C
Operating temperature range (Class B): -40 °C to +85 °C
Application interface features
USB interface (QMI) for Windows 7 and legacy Windows operating
systems MBIM for Windows 8
USB Link Power Management (LPM2) combined with selective suspend to maximize power savings. Also supports fast wakeup.
AT command interface ([1] AT Command Set for User Equipment (UE) (Release 6) (Doc# 3GPP TS 27.007), plus proprietary extended AT commands in [2] AirPrime MiniCard MC73xx / MC8805 AT Command
Reference (Doc# 4114486))
Software Development Kits (SDK) for Windows 7 and Windows 8 Linux SDK, including a Linux API (Application Program Interface) QDL loader compliant
Support for active antenna control via dedicated antenna control
signals
(ANT_CTRL0:2)
Dynamic power reduction support via software and dedicated signal
(DPR)
