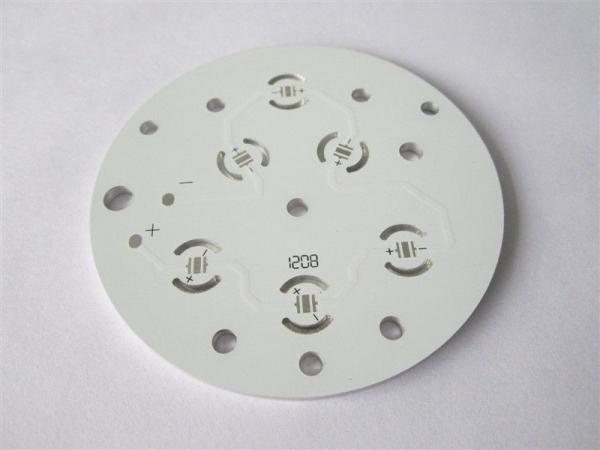

2.0mm 3OZ Aluminum pcb board for metal circuit board with immersion
gold
Aluminium PCB Insulating Layer /Dielectic Layer
The insulating layer is the core technology of the Aluminium PCB,
which mainly serves as the function of adhesion, insulation and
heat conduction. The better the thermal conductivity of insulation
is, the quicker the components spread the heat when they work,
which can realize the purpose like improving power loading of the
modules,reducing volume, extending life span and increase the
output power. Shinelink has rich experience in manufacturing
aluminium PCB with high thermal conductivity.
PCB Capabilities
| Number of Layer | 1 - 20 Layer |
| Maximum Processing Area | 680 × 1000MM |
| Min Board Thickness | 2 Layer - 0.3MM ( 12 mil ) |
| 4 Layer - 0.4MM ( 16 mil ) |
| 6 Layer - 0.8MM ( 32 mil ) |
| 8 Layer - 1.0MM ( 40 mil) |
| 10 Layer - 1.1MM ( 44 mil ) |
| 12 Layer - 1.3MM ( 52 mil ) |
| 14 Layer - 1.5MM ( 59 mil ) |
| 16 Layer - 1.6MM ( 63 mil ) |
| 18 Layer - 1.8MM ( 71 mil ) |
| Finished Board Thickness Tolerance | Thickness ≤ 1.0MM, Tolerance: ± 0.1MM |
| 1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10% |
| Twisting and Bending | ≤ 0.75%, Min: 0.5% |
| Range of TG | 130 - 215 ℃ |
| Impedance Tolerance | ± 10%, Min: ± 5% |
| Hi-Pot Test | Max: 4000V/10MA/60S |
| Surface Treatment | HASL, With Lead, HASL Free Lead |
| Flash Gold, Immersion Gold |
| Immersion Silver, Immersion Tin |
| Gold Finger, OSP
|
Features
1. High quality products, Europoean and US standard
2. 3528 or 5050 SMD LED adopted,high brightness ,stable
performance.
3. long lifetime,5% attenuation after 2500 hours,life time is
80000-100000 hours
4. Energy saving and environmental friendly.
5. 5m/rell is the standard package,but the size can be customized
6. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M.
etc.
7. Each unit of 3LEDs can be cut out at regular segments.
8. White, warm white,red,green,blue and yellow color and RGB
available.
Specification
1. Surface Treatment ---- HASL,Flash gold Immersion Gold/Nickle,OSP
2. Number of Layer ----- Single Sided , Two-sided and multilayer
,Special layer
3. Max. PCB Size ----- 600mm×500mm
4. PCB Thickness ----- 0.5-5.0mm
5. Copper Foil Thickness ----- H 1 2 3 4 6 10 (oz)
6. Insulating Layer Thickness ----- 50 75 100 125 150 (um)
7. Metal Base Type ----- Al (1100,5052,6061),Cu, Fe, Stainless
Steel etc.
8. Metal Substrate ----- 0.5 0.8 1.0 1.2 1.5 2.0 3.0 3.2 (mm)
9. Shaping ----- Die PunchingStampingRouteV-Cut
10.Solder Mask Colour ----- GreenWhiteBlackRedYellow
11. The Minimum Letter Height ----- 0.8 (mm)
12. The Minimum Letter Line Width ----- 0.15 (mm)
13.The Minimum Line Width ----- 0.15 (mm)
14. The Minimum Line Spacing ----- 0.15 (mm)
15. The Minimum Hole Diameter ----- 0.5 (mm)
16. Special hole ----- Spot facing, ,cup hole
17. File Format ----- Gerberprotelpowerpcbactocad
About us
Shinelink Technology Ltd is more than just a leading PCB
manufacturer. We are capable of providing all PCB assembly needs
inculding full turnkey and partial turnkey printed circuit board
assembly services.
For full turn-key, we take care of the entire process, including
preparation of Printed Circuit Boards, procurement of components,
online order tracking, continuous monitoring of quality and final
assembly. Whereas for partial turn-key, the customer can provide
the PCBs and certain components, and the remaining parts will be
handled by us.
We has modernized its PCB assembly services to offer a one-stop,
turn-key PCB assembly service which includes parts, fabrication and
assembly - reducing production costs while improving quality and
convenience.
Our Pcba service include
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. PCB board with parts assembled
4. Electronic testing circuit board or PCBA
5. Fast delivery, anti-static package
6. RoHS Directive-compliant, lead-free
7. One stop service for PCB design, PCB layout, PCB manufacture,
components purchasing, PCB assembly, test, packing and PCB delivery
