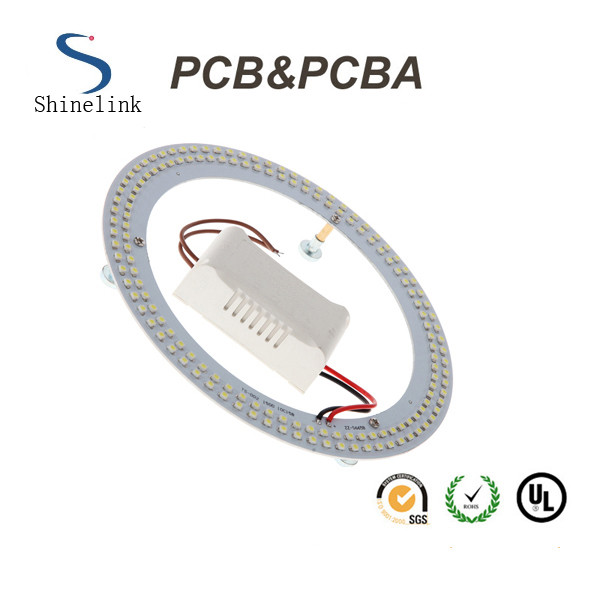

Aluminum PCB assembly for LED lighting with lead-free HASL
Specifications
Layer, 1 layers
Material, Aluminum
Surface Treatment, HASL
Board thickness, 1.6mm
Copper thicknss, 1OZ
Soldermask color, White
Feature
| Number of Layer | 1 - 20 Layer |
| Maximum Processing Area | 680 × 1000MM |
| Min Board Thickness | 2 Layer - 0.3MM ( 12 mil ) |
| 4 Layer - 0.4MM ( 16 mil ) |
| 6 Layer - 0.8MM ( 32 mil ) |
| 8 Layer - 1.0MM ( 40 mil) |
| 10 Layer - 1.1MM ( 44 mil ) |
| 12 Layer - 1.3MM ( 52 mil ) |
| 14 Layer - 1.5MM ( 59 mil ) |
| 16 Layer - 1.6MM ( 63 mil ) |
| 18 Layer - 1.8MM ( 71 mil ) |
| Finished Board Thickness Tolerance | Thickness ≤ 1.0MM, Tolerance: ± 0.1MM |
| 1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10% |
| Twisting and Bending | ≤ 0.75%, Min: 0.5% |
| Range of TG | 130 - 215 ℃ |
| Impedance Tolerance | ± 10%, Min: ± 5% |
| Hi-Pot Test | Max: 4000V/10MA/60S |
| Surface Treatment | HASL, With Lead, HASL Free Lead |
| Flash Gold, Immersion Gold |
| Immersion Silver, Immersion Tin |
| Gold Finger, OSP |
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering
Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
PCB or PCB Assembly files requests
1) Gerber files of the PCB Board
2) BOM(Bill of material) for assembly
To short the lead time,please kindly advertise us if there is any
acceptable components substitution.
3) Testing method & Test fixtures if necessary.
4) programming files & programming tool if necessary
5) Schematic if necessary
Other services
1) Design service
2) Cloning and Copy service
3) Prototyping service
4) Mold making and plastic Injection
5) FPC making
6) Cable and wire Assemblies
7) Supply Chain service
8) other OEM service
